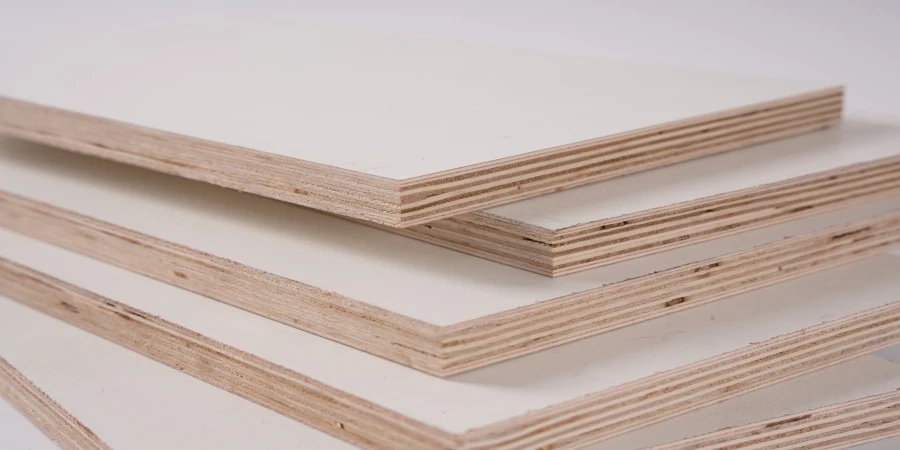

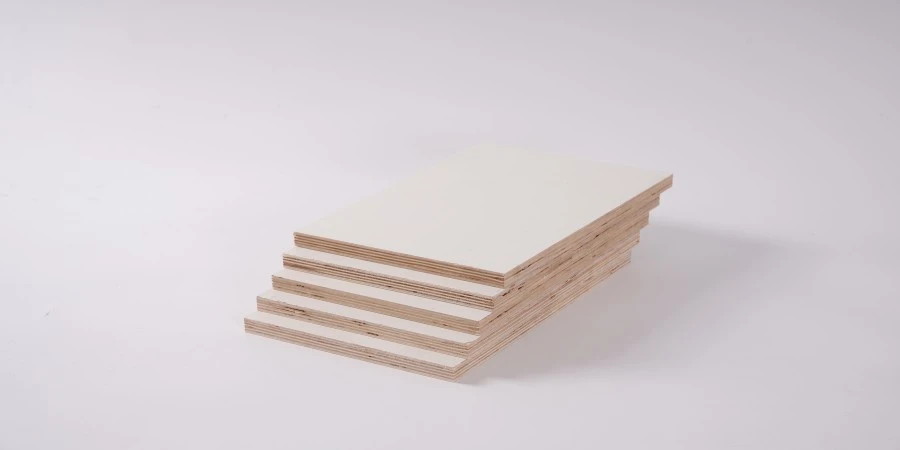

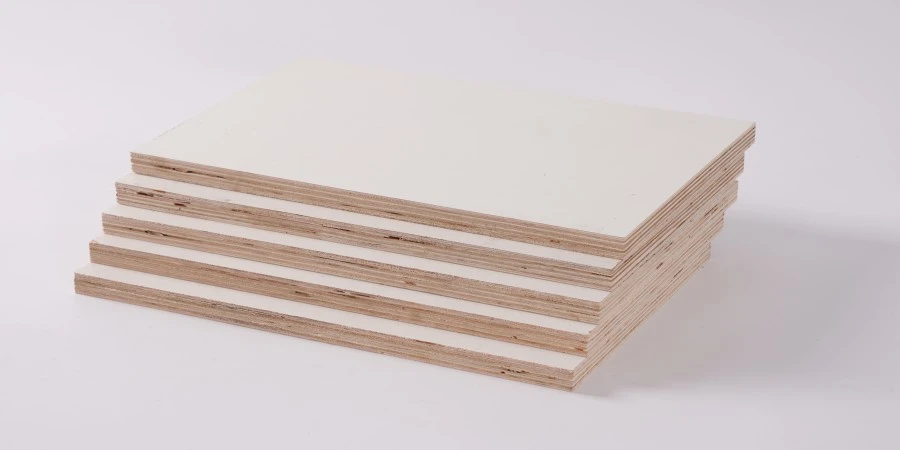

18mm Amaxwebhu ePlywood oLwakhiwo
Ubungakanani (mm): Ubungakanani obuqhelekileyo 1220x2440mm; Customized 1220x2745mm
Ubukhulu: 5mm, 6mm, 12mm, 15mm, 18mm, 25mm okanye ngokwezifiso
Izinto ezingundoqo: I-poplar eucalyptus indibaniselwano eqinileyo okanye i-eucalyptus
Unyango lomphezulu: Umbala: iinkozo zokhuni, imarble, umbala oqinileyo, njl.
Ubume: Mat, i-embossed, ecwebezelayo, iglosi ephezulu, i-super matte
Izinto eziluncedo: Ukuqina okuthe kratya, ukusebenza kakuhle kokubamba iinzipho, ukufuma/ukungangeni manzi, kukulungele ukusetyenziswa kwansuku zonke
I-18mm yoLwakhiwo lwamaPhepha ePlywood-EN 13986 iQinisekiselwe amaPhepha, iindonga kunye nemigangatho engaphantsi
Xa kwakhiwa izakhiwo ezomeleleyo. I-18mm yamaphepha e-plywood yesakhiwo zinika amandla angenakuthelekiswa nanto kunye nokuguquguquka. Isiqinisekiso sokuhlangabezana nemigangatho ye-EN 13986, iiphaneli zethu zenzelwe usetyenziso olubango olunje ngophahla, ukuqinisa eludongeni, kunye nemigangatho engaphantsi. Ngobukhulu obuchanekileyo be-18mm (± 0.3mm) kunye nolwakhiwo olune-13-layer cross-laminated, la maphepha abonelela ngozinzo lweengcali zokuthembela kwiiprojekthi zorhwebo kunye neendawo zokuhlala.
Izikhankanyi Technical
| ye parameter | Specification |
|---|---|
| amacala | 1220x2440mm (ubukhulu beSiko buyafumaneka) |
| Ukunyamezelana | ± 0.3mm |
| Ingaphandle | 13-Ply Cross-Laminated |
| mninzi | 680kg / m³ |
| Ukuthwala umthwalo | 2.5kN/m² (Ivavanywe kwi-ASTM D5456) |
Yakhelwe imisebenzi enzima
Uphahla lwophahla
Iimveliso zethu ezikwaziyo ukumelana nokufuma kwemozulu ngexesha lolwakhiwo, zinomthamo wokubamba izikrufu okhusela izinto zokuphahla ngokufanelekileyo.
Ukuqinisa udonga
Iingqimba ezinqamlezileyo ezinqamlezileyo zibonelela ngokumelana ne-racking ukuya kwi-1800N / m, ukuhlangabezana neemfuno ze-seismic kwiindawo ezinomoya ophezulu.
Ufakelo lomgangatho ongaphantsi
Nciphisa i-squeaks phantsi kunye neepaneli ezigcina i-<12% yomswakama womswakama, ukuthintela ukulwa nakwimozulu efumileyo.
Izinto eziluncedo zoMyalelo omninzi
| Uluhlu lweNkundla | Ixabiso ngePhepha ngalinye | Umthwalo wesikhongozeli |
|---|---|---|
| 100-499 Amaphepha | $23.50 | 550 Amaxwebhu/40HQ |
| 500-999 Amaphepha | $21.80 | IPalletizing ngokweSiko |
| 1000+ Amaphepha | Qhagamshelana nathi | Ukuhanjiswa kwangexesha nje |
Gcina ukuya kuthi ga kwi-15% kwiiprojekthi ezinkulu - buza malunga nemigaqo yethu ye-MOQ eguquguqukayo!
UQinisekiso loMgangatho othembekileyo
- Iwaranti yoLwakhiwo lweminyaka emi-5
- Umntu wesithathu uvavanyelwe ukukhutshwa kwe-formaldehyde (≤0.1ppm)
- Iikhowudi zemveliso ezilandelekayo ngebhetshi
- Unyango olungeyomfuneko lokunqanda umlilo (I-Euroclass B-s1,d0)
I-Eco-Friendly Ngaphandle kokulalanisa
Sifumana amaplanga aqinisekiswe yi-FSC kumahlathi alawulwayo kwaye sisebenzisa izinto zokuncamathelisa ze-E1 ezidlula imigangatho yokukhutshwa kwe-EU. Imveliso yethu evaliweyo iphinda isetyenziselwe i-95% yenkunkuma yenkuni ibe yi-biomass energy.

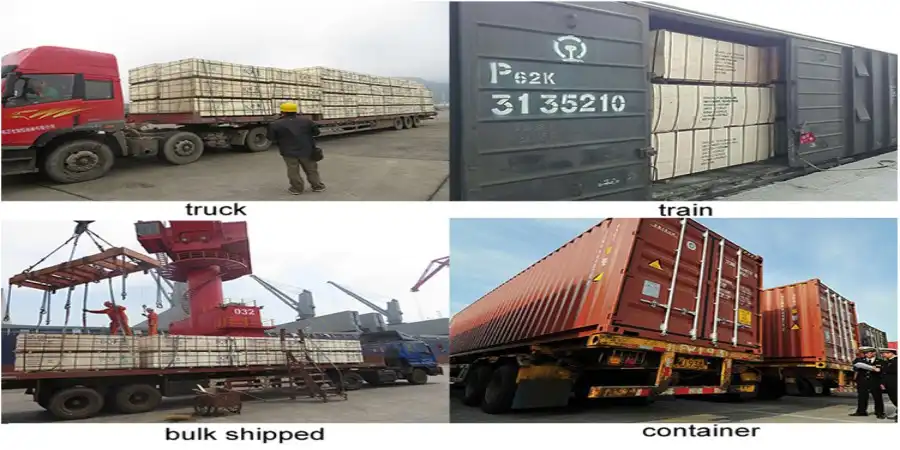

IiProjekthi zeHlabathi, iNkxaso yaseKhaya
- Ukuhanjiswa kwe-EU: Iintsuku ezili-14 ukusuka kwindawo yokugcina impahla yasePoland
- UNxweme oluseNtshona lwaseMelika: Iintsuku ezingama-21 ngeLong Beach Port
- KuMbindi Mpuma: Iintsuku ezingama-30 ukusuka kwindawo ye-UAE
Iziphumo zeLizwe lokwenyani
> "Ukusebenzisa ezi I-18mm yamaphepha e-plywood yesakhiwo sinqumle ixesha lethu lofakelo ngama-20%-ukungaguquguquki kobunzima buphelise umsebenzi obengezelayo."
> – Müller Bau GmbH, ikontraki yoRhwebo (eJamani)
FAQ
1. Ngaba la maphepha akulungele ukusetyenziswa ngaphandle?
Ewe! I-phenolic resin bonding ibenza baxhathise umonakalo womswakama kwi-subfloors kunye neendonga zangaphandle.
2. Zeziphi iziqinisekiso onazo?
Siyi-EN 13986, iSigaba sesi-2 se-CARB, kunye ne-FSC-eqinisekisiweyo, kunye neengxelo zovavanyo ezipheleleyo ezikhoyo.
3. Ngaba ndingaodola ubungakanani besiko?
Ngokuqinisekileyo - sibonelela ngeepaneli ze-CNC-cut down to 100mm increments.
4. Ingaba ezi zithelekiseka njani kwi-OSB?
Iimveliso zethu zibonelela nge-30% amandla aphezulu okucheba kunye namandla angcono okubamba iinzipho kune-OSB efanayo.
5. Lithini ixesha lokukhokela kumaphepha angama-500+?
Ngokuqhelekileyo iintsuku zokusebenza ezili-18, kubandakanywa unyango olungaphezulu kunye nokupakishwa kwamanye amazwe.
Ngaba ufuna uncedo lokuchaza iMathiriyeli?
Thumela i-imeyile kwiqela lethu lobunjineli: howie@longtermwood.com kuba 18mm Amaxwebhu ePlywood oLwakhiwo
Impendulo kwiiyure ezi-2 ngexesha leentsuku zokusebenza
